Steel Beams
These are the most common steel beams and channels available in New Zealand.

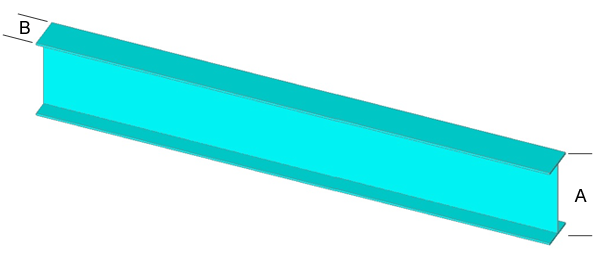

Universal Beams (UB's) / I Beams
Beam Name | Depth of Section (A) | Width of Section (B) | Flange Thickness | Web Thickness | Weight (kg per metre) |
---|---|---|---|---|---|
150UB14 | 150 | 76 | 7 | 5 | 14 |
150UB18 | 155 | 75 | 9.5 | 6 | 18 |
180UB16 | 173 | 90 | 7 | 4.5 | 16 |
180UB18 | 175 | 90 | 8 | 5 | 18 |
180UB22 | 179 | 90 | 10 | 6 | 22 |
200UB18 | 198 | 99 | 7 | 4.5 | 18 |
200UB22 | 202 | 133 | 7 | 5 | 22 |
200UB25 | 203 | 133 | 7.8 | 5.8 | 25 |
200UB30 | 207 | 134 | 9.6 | 6.3 | 30 |
250UB26 | 248 | 124 | 8 | 5 | 26 |
250UB31 | 252 | 146 | 8.6 | 6.1 | 31 |
250UB37 | 256 | 146 | 10.9 | 3.4 | 37 |
310 UB 32 | 298 | 149 | 8 | 5.5 | 32 |
310 UB 32 | 298 | 149 | 8 | 5.5 | 32 |
310 UB 32 | 298 | 149 | 8 | 5.5 | 32 |
310 UB 40 | 303.8 | 165 | 10.2 | 6.1 | 40.4 |
310 UB 40 | 303.8 | 165 | 10.2 | 6.1 | 40.4 |
310 UB 40 | 303.8 | 165 | 10.2 | 6.1 | 40.4 |
310 UB 40 | 304 | 165 | 10.2 | 6.1 | 40.4 |
310 UB 46 | 307 | 166 | 11.8 | 6.7 | 46.2 |
310 UB 46 | 307 | 166 | 11.8 | 6.7 | 46.2 |
310 UB 46 | 307 | 166 | 11.8 | 6.7 | 46.2 |
310 UB 46 | 307 | 166 | 11.8 | 6.7 | 46.2 |
360 UB 45 | 352 | 171 | 9.73 | 6.86 | 44.7 |
360 UB 45 | 352 | 171 | 9.73 | 6.86 | 44.7 |
360 UB 45 | 352 | 171 | 9.73 | 6.86 | 44.7 |
360 UB 45 | 352 | 171 | 9.73 | 6.86 | 44.7 |
360 UB 51 | 355.6 | 171.5 | 11.5 | 7.29 | 50.7 |
360 UB 51 | 355.6 | 171.5 | 11.5 | 7.29 | 50.7 |
360 UB 51 | 355.6 | 171.5 | 11.5 | 7.29 | 50.7 |
360 UB 51 | 355.6 | 171.5 | 11.5 | 7.29 | 50.7 |
360 UB 57 | 358.6 | 172.1 | 13 | 7.95 | 56.7 |
360 UB 57 | 358.6 | 172.1 | 13 | 7.95 | 56.7 |
410 UB 54 | 402.6 | 177.6 | 10.9 | 7.59 | 53.7 |
410 UB 54 | 402.6 | 177.6 | 10.9 | 7.59 | 53.7 |
410 UB 54 | 402.6 | 177.6 | 10.9 | 7.59 | 53.7 |
410 UB 60 | 406.4 | 177.8 | 12.8 | 7.8 | 59.7 |
410 UB 60 | 406.4 | 177.8 | 12.8 | 7.8 | 59.7 |
410 UB 60 | 406.4 | 177.8 | 12.8 | 78 | 59.7 |
460 UB 67 | 453.6 | 189.9 | 12.7 | 8.48 | 67.1 |
460 UB 67 | 453.6 | 189.9 | 12.7 | 8.48 | 67.1 |
460 UB 67 | 453.6 | 189.9 | 12.7 | 8.48 | 67.1 |
460 UB 74 | 457.2 | 190.4 | 14.5 | 9.09 | 74.6 |
460 UB 74 | 457.2 | 190.5 | 14.5 | 9.09 | 74.6 |
530 UB 82 | 528.3 | 208.7 | 13.2 | 9.55 | 82 |
530 UB 82 | 528.3 | 208.7 | 13.2 | 9.55 | 82 |
610 UB 101 | 602.2 | 227.6 | 14.8 | 10.8 | 101 |

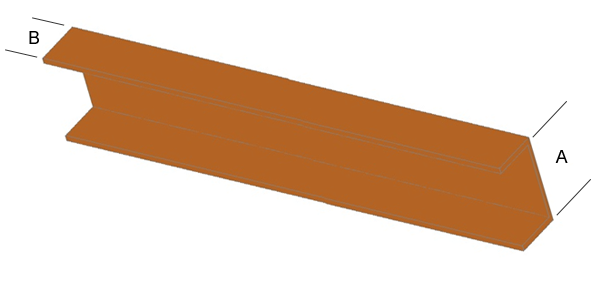

Parallel Flanged Channels (PFC's)
Beam Name | Depth (A) | Width (B) | Flange Thickness | Web Thickness | Weight (kg per metre) |
---|---|---|---|---|---|
50PFC | 50 | 25 | - | - | 3.83 |
75PFC | 75 | 40 | 6.8 | 5.1 | 7 |
100PFC | 100 | 50 | 6.7 | 4.2 | 9.4 |
125PFC | 125 | 65 | 7.5 | 4.7 | 13.4 |
150PFC | 150 | 75 | 9.5 | 6 | 21 |
180PFC | 180 | 75 | 11 | 6 | 23 |
200PFC | 200 | 75 | 12 | 6 | 23 |
230PFC | 230 | 75 | 12 | 6.5 | 25.1 |
250PFC | 250 | 90 | 15 | 8 | 35.5 |
300PFC | 300 | 90 | 16 | 8 | 43.8 |
380PFC | 380 | 100 | 17.5 | 10 | 55.2 |
If you require further information please contact our office.
Hint: If you want to work out the weight of your beam or channel multiply the weight by the metres. Usually it means they are too heavy for you to lift without lifting equipment. We can help with this!
